Hangzhou Ocean Industry co, Ltd se youn nan dirijan manifaktirè yo ak founisè nan btl doub pitch anplasman nan Lachin. Byenveni nan wholesale esansyèl chèn endistriyèl dirab ak pati transmisyon pouvwa te fè nan peyi Lachin isit la soti nan faktori nou an. Tout pwodwi Customized yo ak kalite siperyè ak pri konpetitif.

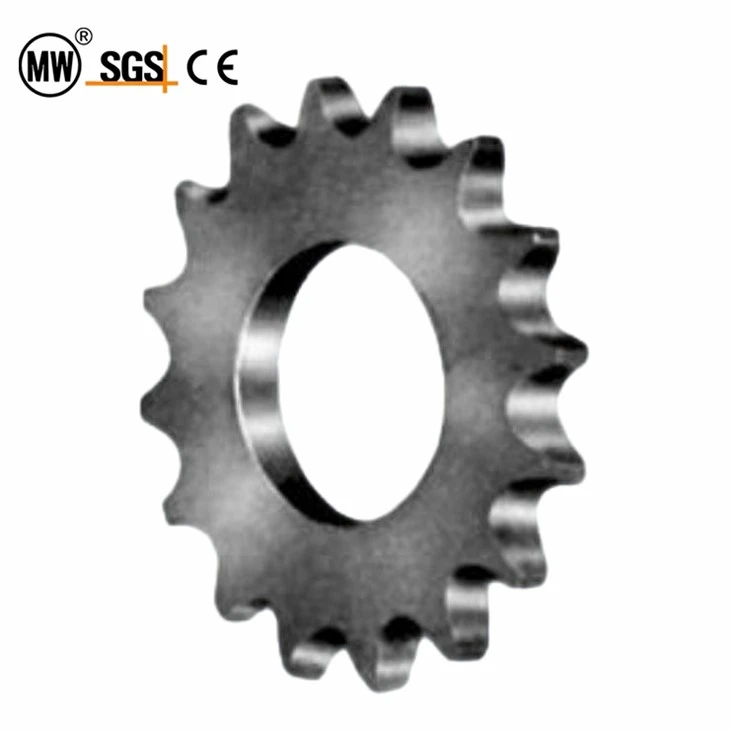

BTL Double Pitch Sprockets se yon piyon ki fèt espesyalman pou chenn angrenaj doub, apwopriye pou ti chenn CONVEYOR. Pwodwi sa yo gen karakteristik sa yo: sitou itilize pou ti sistèm chèn CONVEYOR ak pi long distans ak pi ba vitès; Malgre ke lyen yo chèn, kousinen, ak woulèt yo rete san okenn chanjman, espas plak la double, sa ki ka diminye kantite dan piyon an meshing ak chèn lan pa mwatye, siyifikativman diminye mete. Anplis de sa, espesifikasyon espesifik enfòmasyon sou chèn an doub Kovèti pou, tankou dyamèt enteryè, dyamèt ekstèn, ak pwa, ka jwenn nan dokiman ki enpòtan pou enstriksyon detaye.
Done detaye sa yo ak estanda asire ke kliyan yo ka chwazi pwodwi ki pi byen adapte bezwen aplikasyon yo.
Paramèt
Gamme pwodwi
| Estanda | Kalite seri | Gwosè Range |
| ANSI | 2040/C2040-BTL Pou 1" anplasman | 17-35 |
| 2050/C2050-BTL Pou 1 1/4" anplasman | 17-35 | |
| 2060/C2060-BTL Pou 1 1/2"Pitch | 17-35 | |
| 2080/C2080-BTL Pou 2"Pitch | 17-35 |
Double Pitch BTL piyon
2040 C2040-BTL Pou 1''Pitch

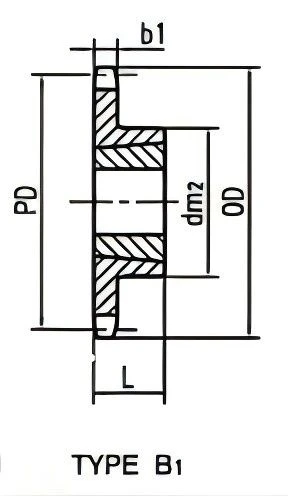

d=0.313'' b1=0.284''
| Non Dan | Efektif No.of Dan | Katalòg No. | O.D | Bush | Bore Max | dm2 | LTB | WT Avèk Bushing |
| 17 19 21 23 25 |
81/2 91/2 101/2 111/2 121/2 |
2040TB17 2040TB19 2040TB21 2040TB23 2040TB25 |
2.970 3.300 3.620 3.940 4.260 |
1008 1210 1610 1610 1610 |
1008 1210 1610 1610 1610 |
2 215/32 225/32 3 31/4 |
7/8 1 1 1 1 |
1.0 1.4 1.7 1.8 2.1 |
| 31 35 |
151/2 171/2 |
2040TB31 2040TB35 |
5.210 5.860 |
1610 1610 |
15/8 15/8 |
31/4 31/4 |
1 1 |
3.0 3.4 |
2050 C2050-BTL Pou 1 1/4''Pitch
d=0.400'' b1=0.343''
| Non Dan | Efektif No.of Dan | Katalòg No. | O.D | Bush | Bore Max | dm2 | LTB | WT Avèk Bushing |
| 17 18 19 20 21 |
81/2 9 91/2 10 101/2 |
2050TB17 2050TB18 2050TB19 2050TB20 2050TB21 |
3.720 3.920 4.120 4.320 4.520 |
1210 1210 1610 1610 1610 |
11/4 11/4 15/8 15/8 15/8 |
225/32 225/32 215/16 3 3 |
1 1 1 1 1 |
1.30 1.50 2.10 2.10 2.20 |
| 23 25 35 |
111/2 121/2 171/2 |
2050TB23 2050TB25 2050TB35 |
4.920 5.320 7.320 |
2012 2012 2012 |
2 2 2 |
37/8 37/8 37/8 |
11/4 11/4 11/4 |
3.30 3.80 5.60 |
Double Pitch BTL piyon
2060 C2060-BTL Pou 1 1/2''Pitch
d=0.469'' b1=0.459''
| Non Dan | Efektif No.of Dan | Katalòg No. | O.D | Bush | Bore Max | dm2 | LTB | WT Avèk Bushing |
| 17 19 20 21 23 |
81/2 91/2 10 101/2 111/2 |
2060TB17 2060TB19 2060TB20 2060TB21 2060TB23 |
4.460 4.940 5.190 5.430 5.910 |
1610 1610 1610 2012 2012 |
15/8 15/8 15/8 2 2 |
3 3 3 37/8 37/8 |
1 1 1 11/4 11/4 |
2.50 3.00 3.50 4.10 4.70 |
| 25 27 31 35 |
121/2 131/2 151/2 171/2 |
2060TB25 2060TB27 2060TB31 2060TB35 |
6.390 6.870 7.830 8.780 |
2012 2012 2012 2012 |
2 2 2 2 |
37/8 37/8 37/8 37/8 |
11/4 11/4 11/4 11/4 |
5.30 6.20 7.40 8.60 |
2080 C2080-BTL Pou 2''Pitch
d=0.625'' b1=0.575''
| Non Dan | Efektif No.of Dan | Katalòg No. | O.D | Bush | Bore Max | dm2 | LTB | WT Avèk Bushing |
| 17 19 20 21 23 |
81/2 91/2 10 101/2 111/2 |
2080TB17 2080TB19 2080TB20 2080TB21 2080TB23 |
5.950 6.590 6.910 7.230 7.880 |
2012 2517 2517 2517 2517 |
2 21/2 21/2 21/2 21/2 |
37/8 41/4 41/4 41/4 41/4 |
11/4 13/4 13/4 13/4 13/4 |
4.80 9.00 9.40 9.70 10.80 |
| 25 27 31 35 |
121/2 131/2 151/2 171/2 |
2080TB25 2080TB27 2080TB31 2080TB35 |
8.520 9.160 10.430 11.710 |
2517 2517 2517 2517 |
21/2 21/2 21/2 21/2 |
41/4 41/4 41/4 41/4 |
13/4 13/4 13/4 13/4 |
11.70 14.50 16.80 19.30 |
